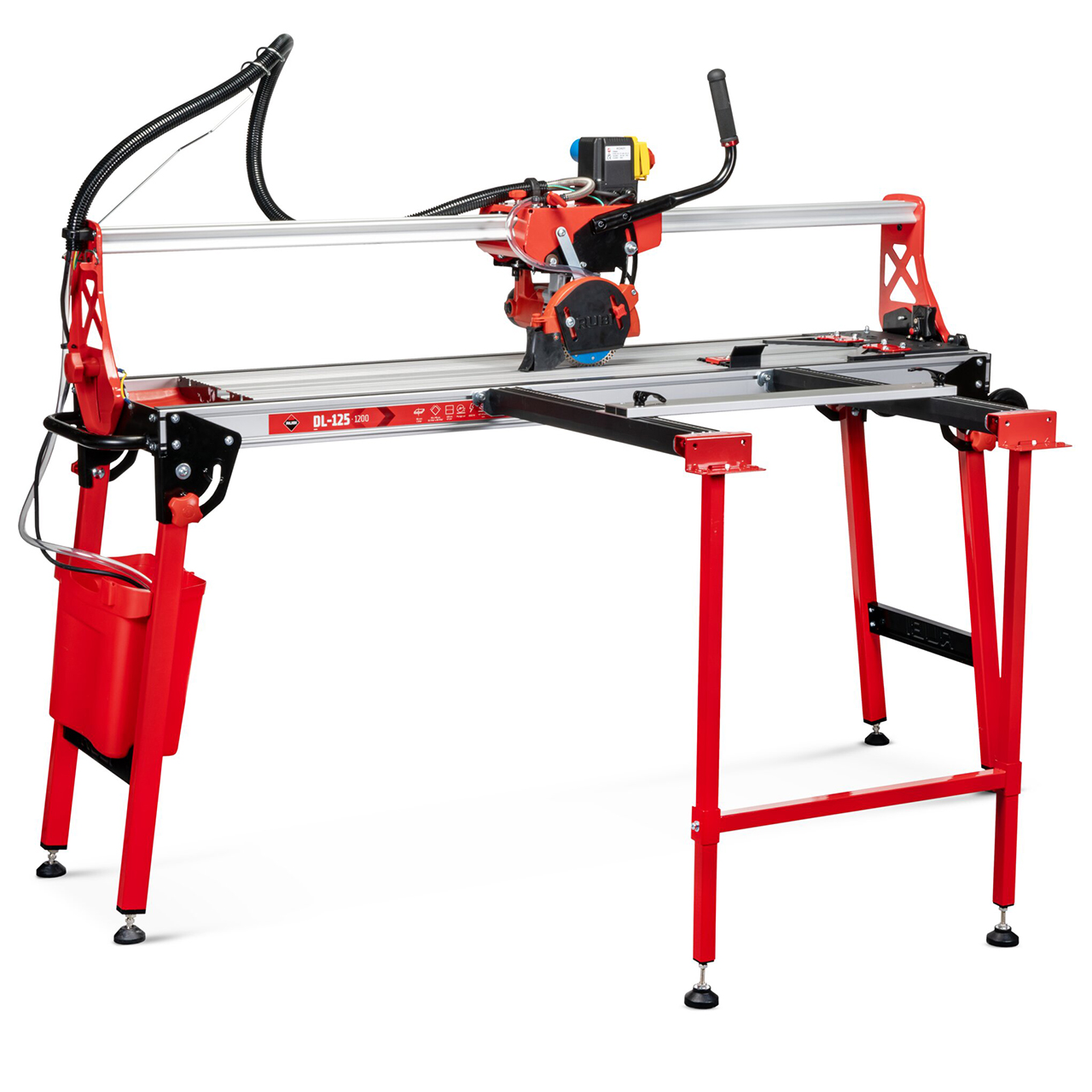

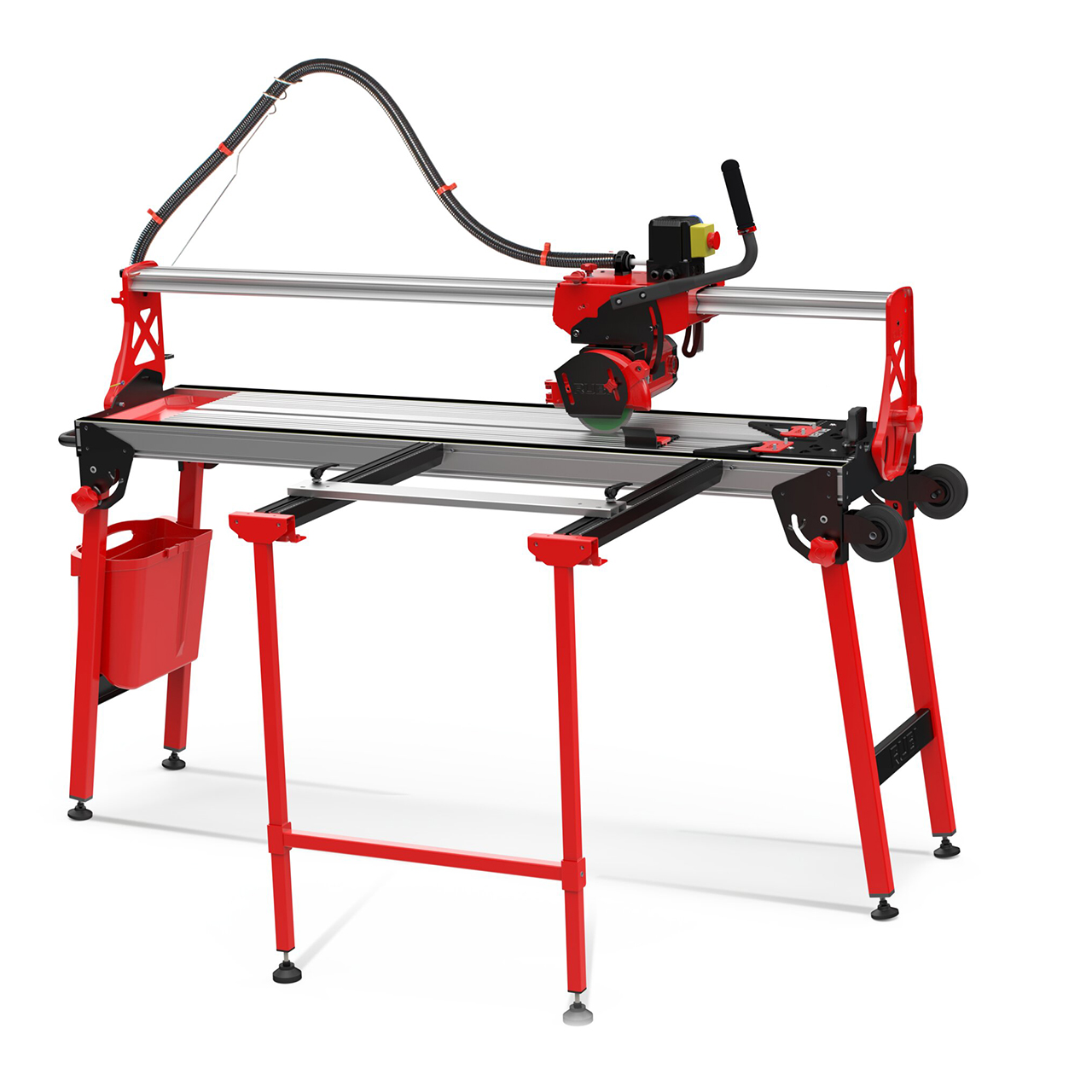

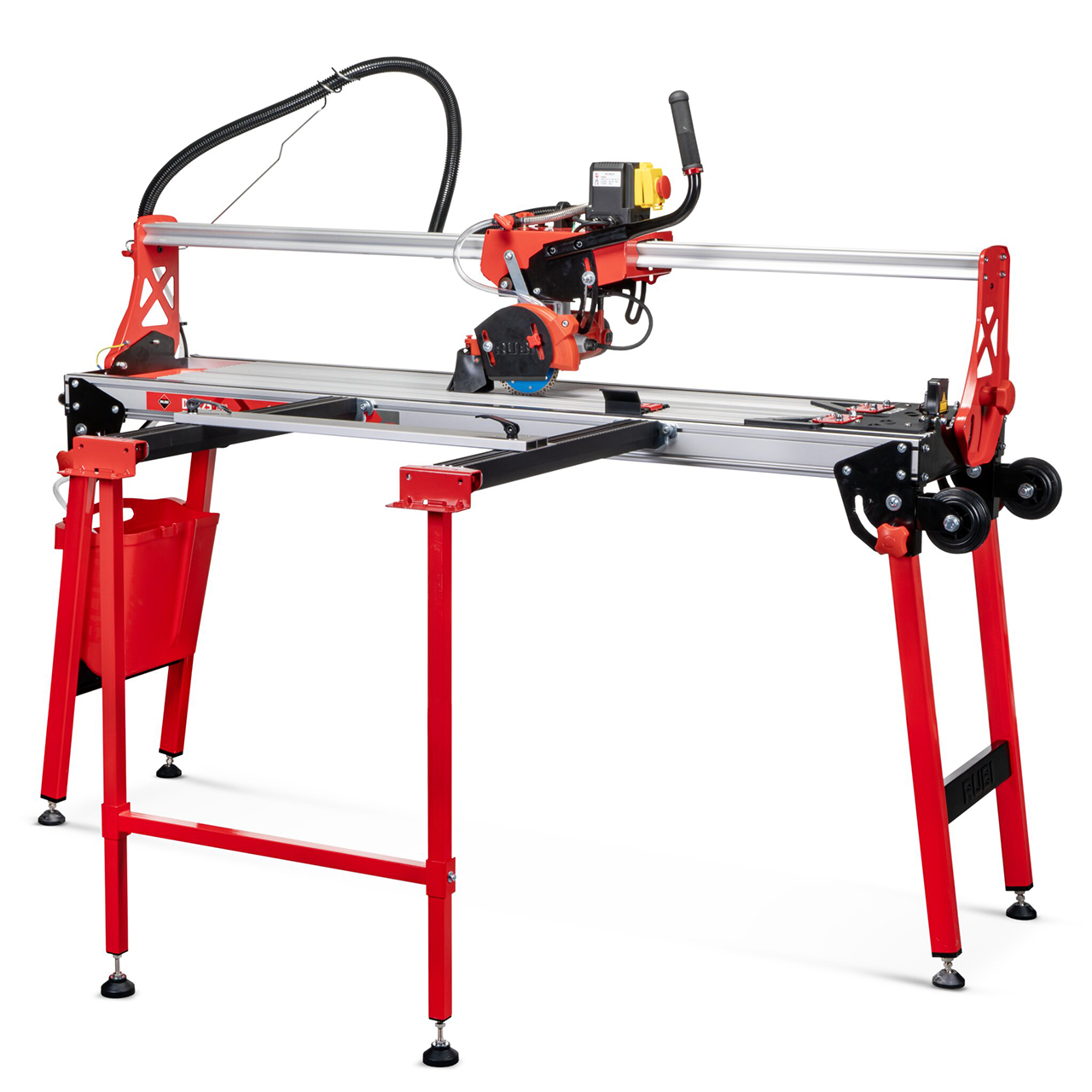

Electric machine with cutting effect. Motor set mounted on bearings for maximum precision and reliability. 1800W (2,3CV) universal motor.

INCLUDED

• 125mm TVR Diamond Blade
• 230v Power Cable

USE

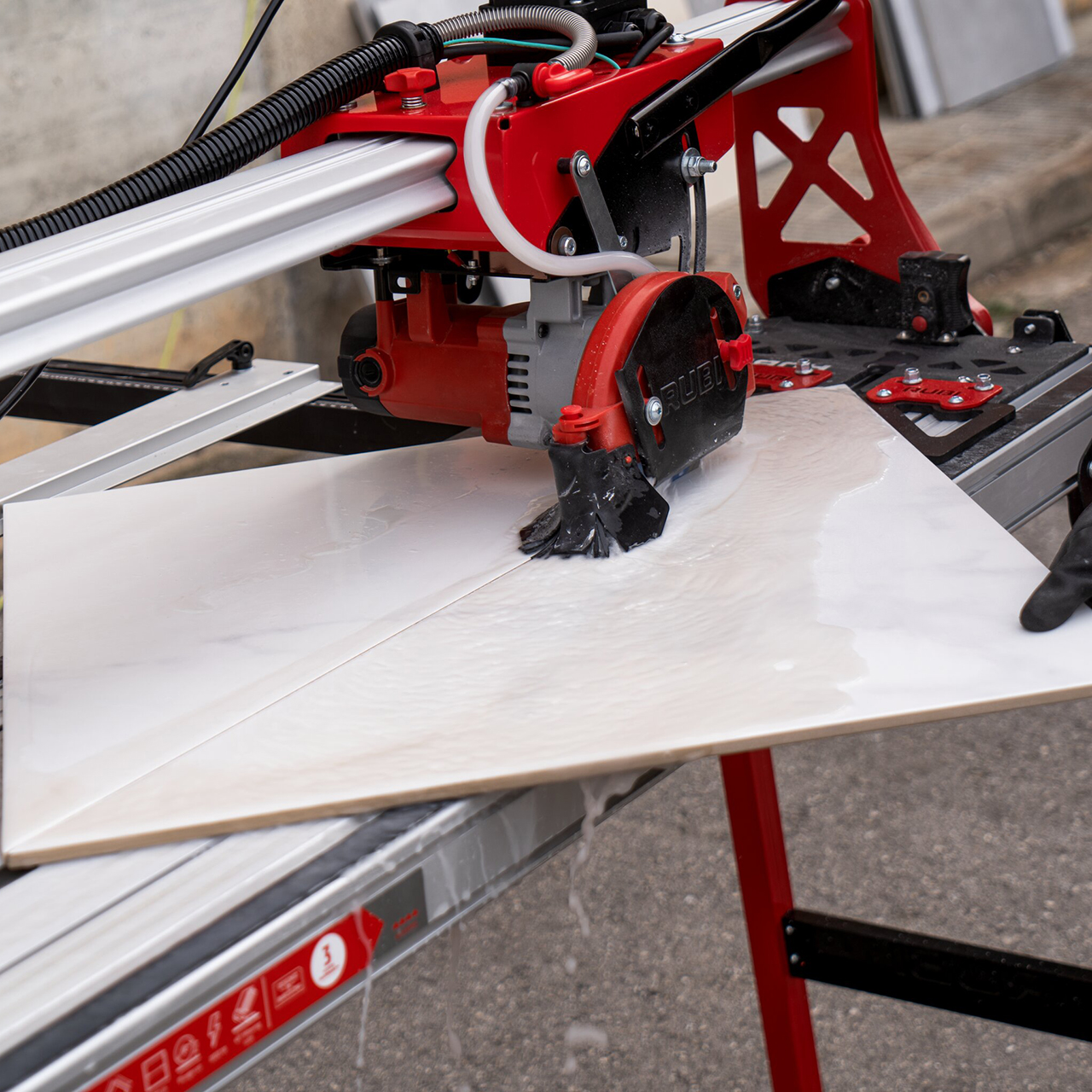

• Mobile head electric cutter with plunge effect for intensive cutting of porcelain material, sintered stone and ceramics.
• For the occasional cut of natural stone, marble and granite.

CHARACTERISTICS

• Plunge effect that allows the cutting depth to be adjusted according to the diameter of the disc used, which makes the machine compatible with blades between 115 mm (4.5 ) and 130 mm (5 ) in diameter. SUPERPRO category.

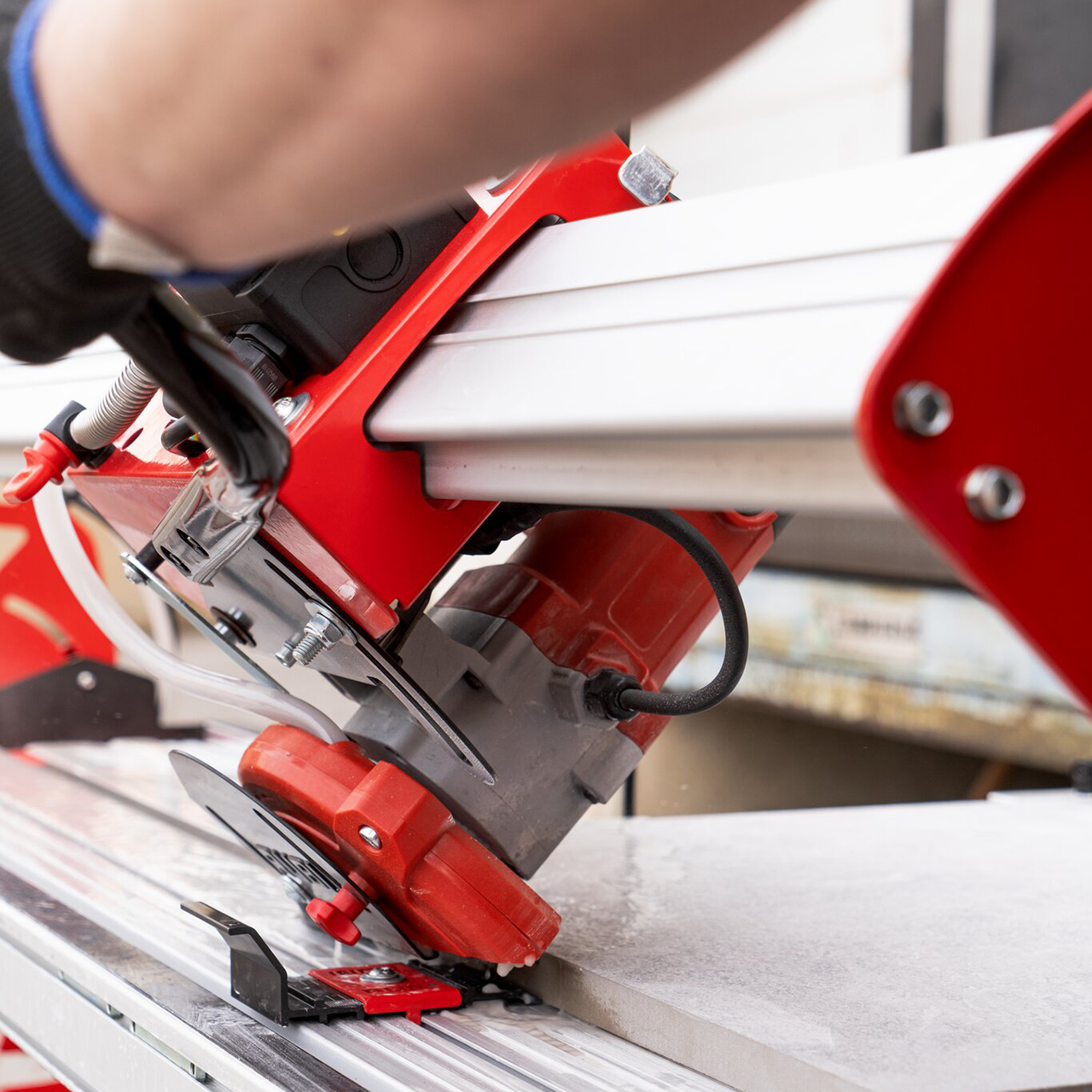

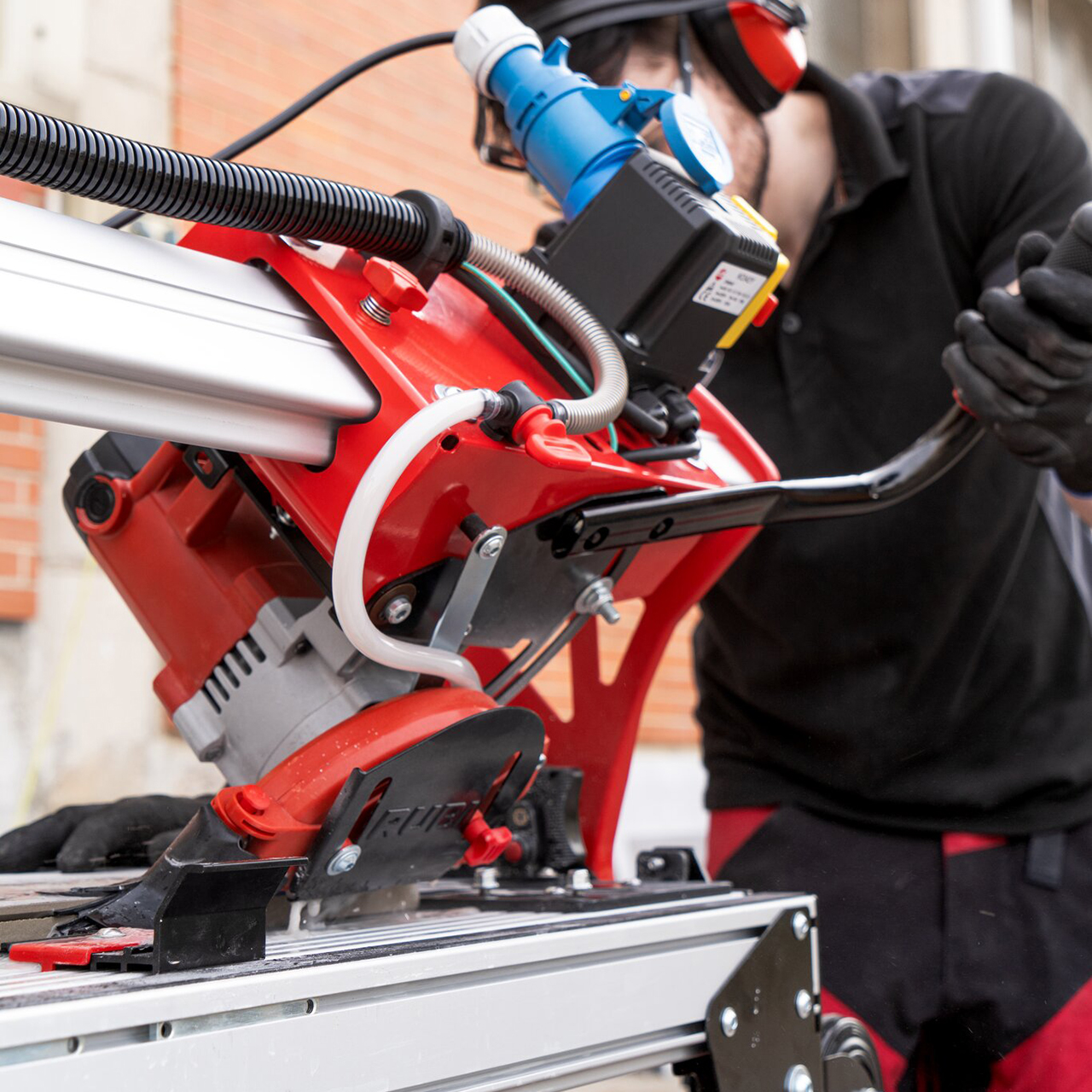

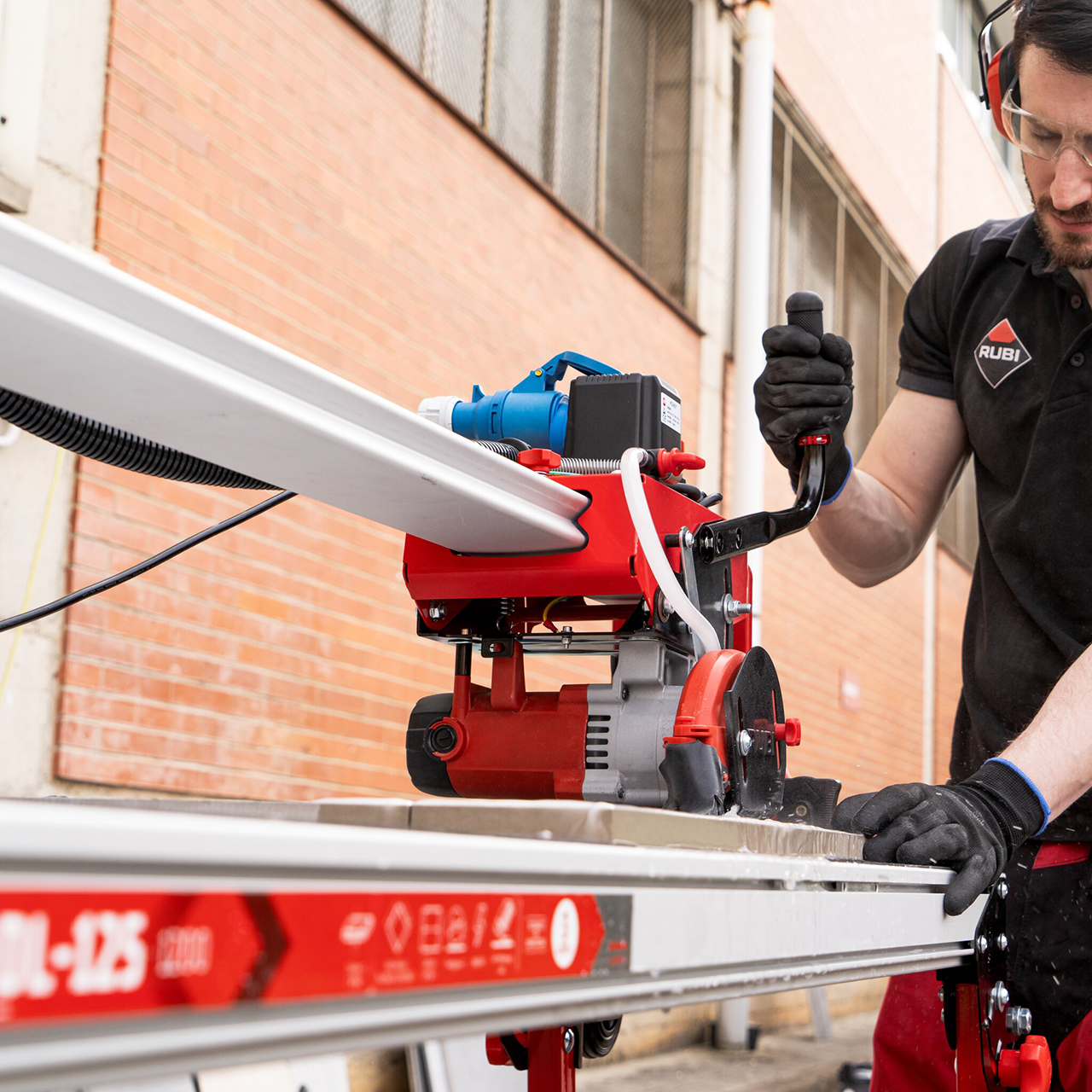

• Sliding head by means of bearings for a smooth movement and tilting at 45º to make mitre cuts. The motor is direct driven.
• The structure is light and robust, being made of aluminium.
• The transport of the machine is easy thanks to the folding legs and the integrated wheels.
• All legs have height adjustment for optimal levelling and stability of the machine.
• The tables offer a high resistance, being made of aluminium.

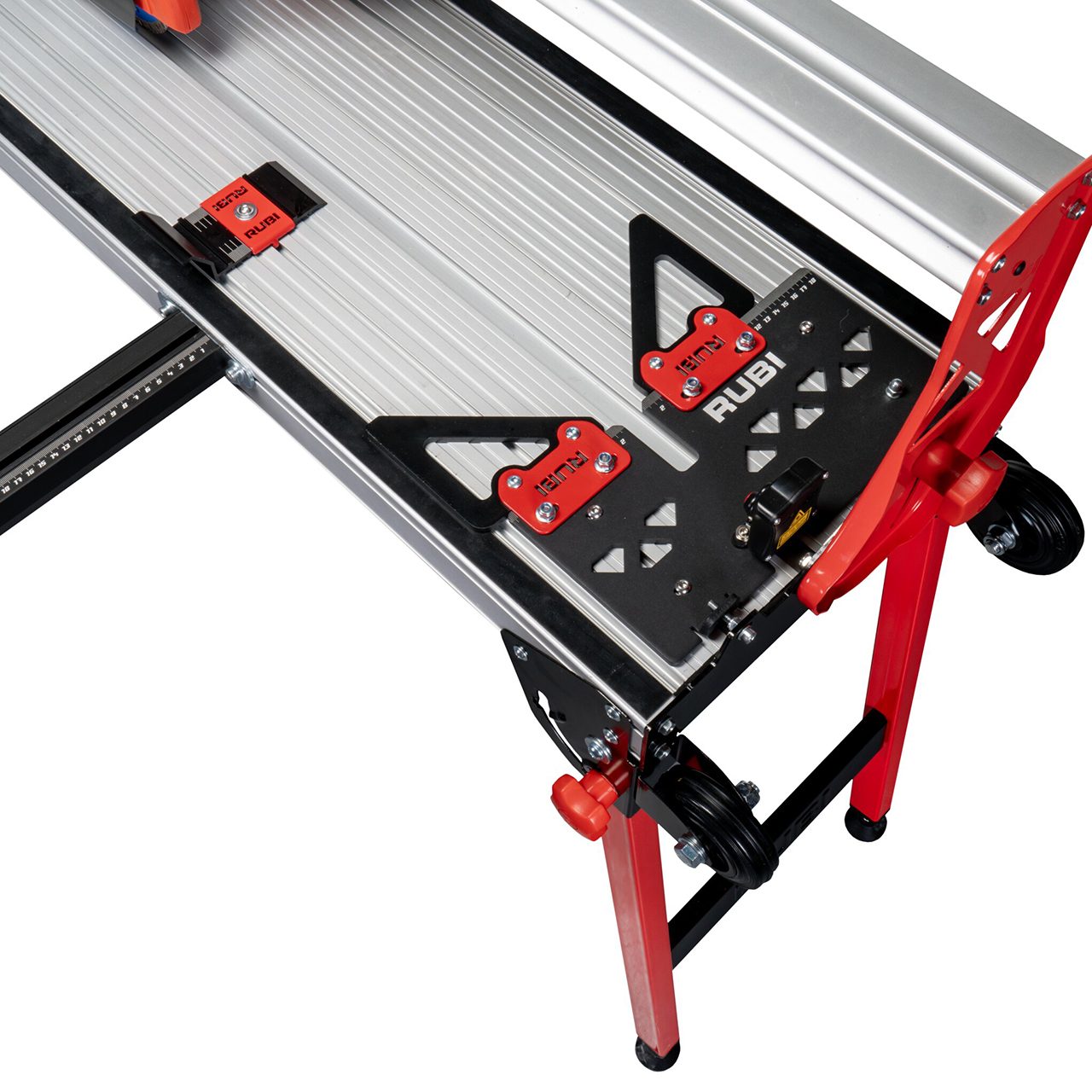

• The fixed square is printed in millimetres for a perfect fit of the ceramic.
• The machine is supplied with a side support for compatibility with large ceramic formats.
• It is equipped with a tracer laser to facilitate the positioning of the tile.

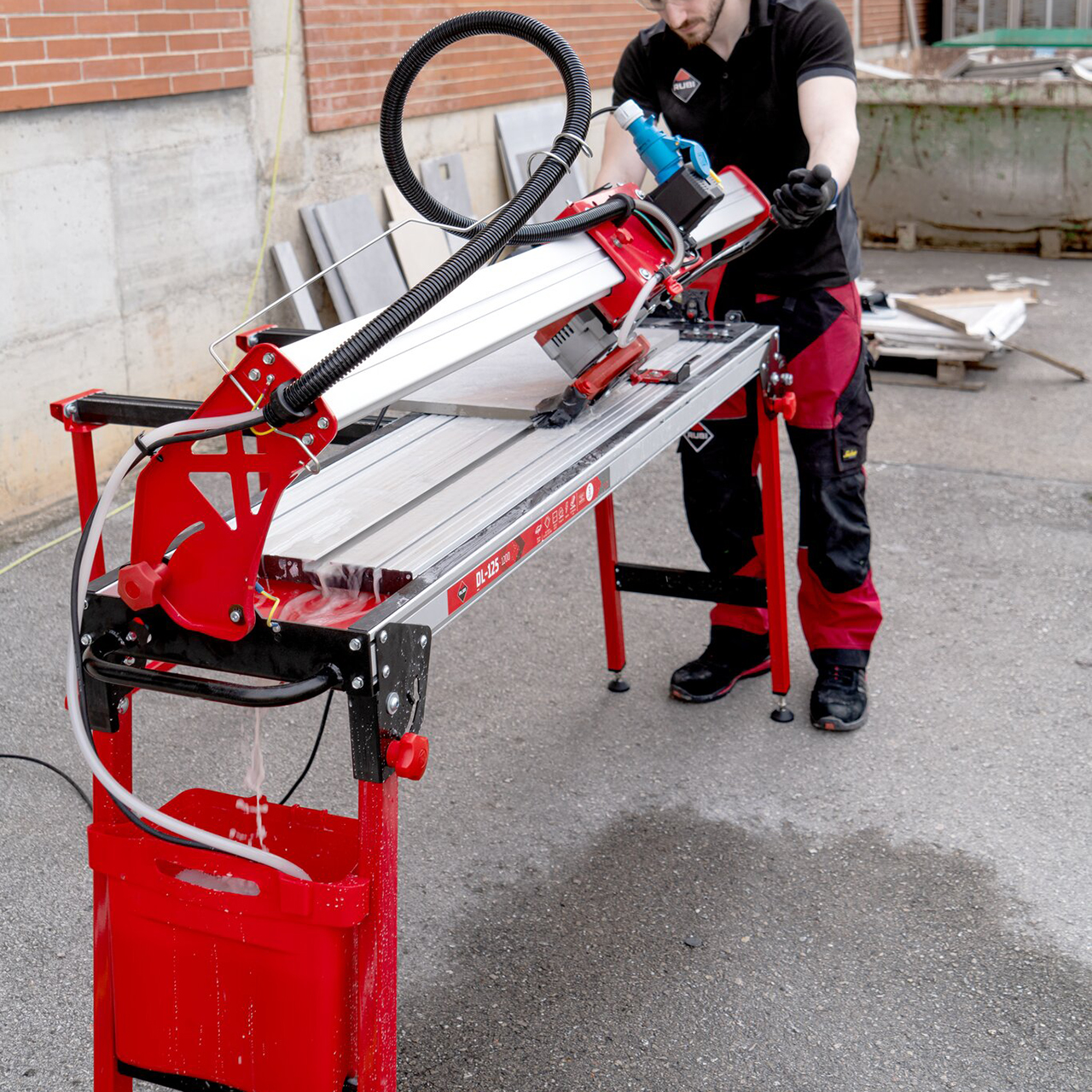

• The plastic tray system allows optimal water recovery and thus reduces losses.

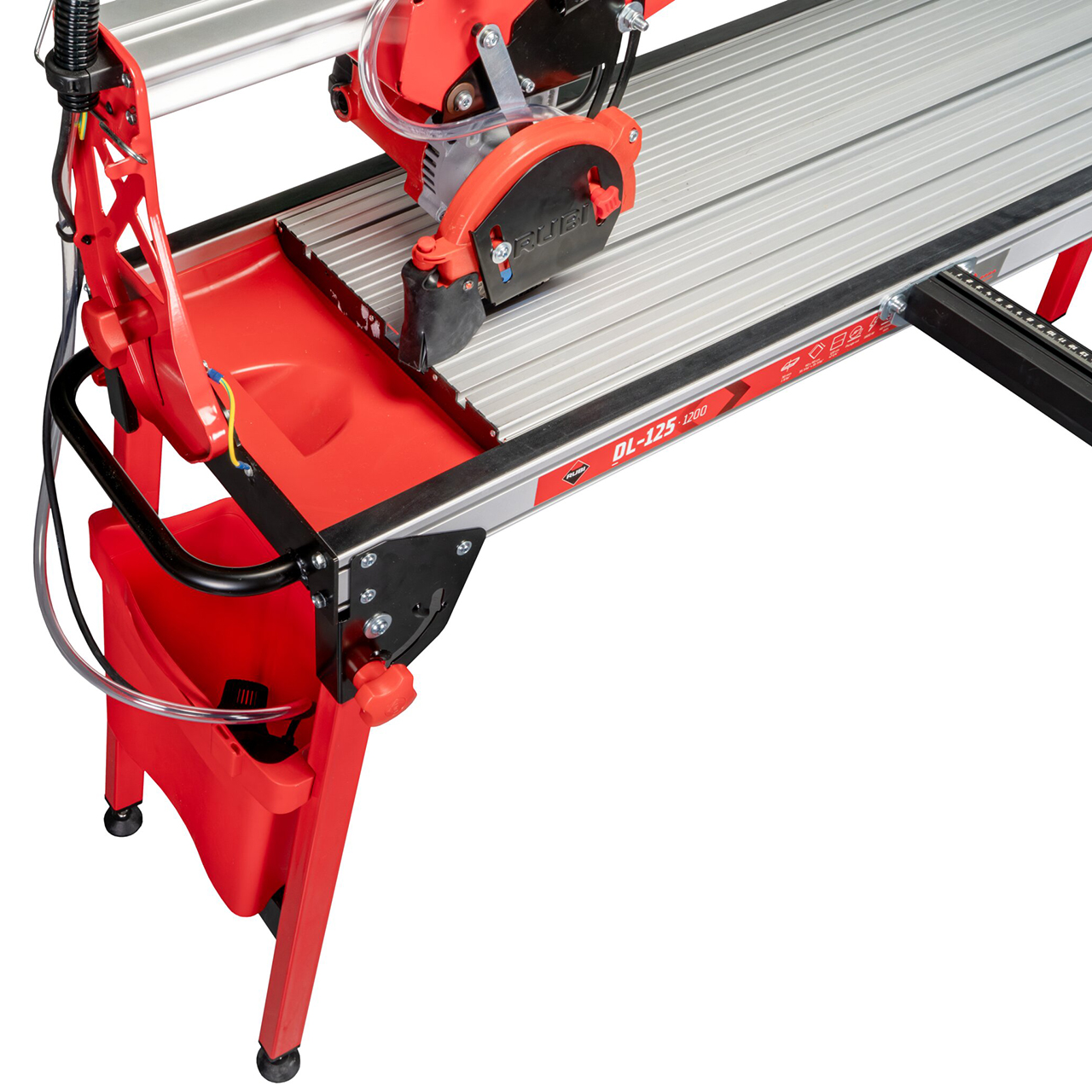

• The water tank has a capacity of 8L, is removable and has a handle for easy handling.
• The machine is equipped with the Zero Dust system, which allows safe exposure to ceramic cutting because it collects the dust generated during cutting and deposits it in the water.
• Blade parallelism adjustment system.

TECHNICAL SPECIFICATIONS

• Power: 1800 W (2.5 Hp)
• Voltage: 230v 50Hz
• Maximum straight cut length:
  124 cm (49") without plunge effect
  133 cm (52") with plunge effect
• Maximum diagonal cutting length:
  87,5x87,5 cm (34 x34 )without plunge effect
  90x90 cm (35 x35 ) with plunge effect
• Maximum cutting thickness:
  30 mm with one step / passes
  50 mm with two steps / passes
• Maximum cutting thickness at mitre cuts: 20 mm
• Rpm: 10.000 - 12.000 (5.000 - 7.000 with load)
• Outer diameter of the blade: 115 130 mm
• Blade inner diameter: 22.2 mm
• Laser tracer power: 2mW
• Machine dimensions:
  Folded: 177x47x68 cm
  Unfolded: 177x47x131 cm
  Unfolded with lateral support: 177x185x131 cm
• IP 20
