Specifically designed to simplify drainage from tiled showers and wet rooms. The Schluter KERDI-LINE-G3 Linear Drainage stands out for its drain capacity of 0.45 l/s (single outlet)
Please Note: This item ships directly from the manufacturer.
Lead time is approximately 2-3 working days*.
Should lead-times change, we will contact you with the expected lead-time.
Specifically designed to simplify drainage from tiled showers and wet rooms – whether a new build or refurbishment project. Use in conjunction with the Schlüter-KERDI system components and other Schluter products to provide a fully waterproofed integrated system solution.
The linear drainage set KERDI-LINE-G3, which complies with BS EN 1253 and BS EN 274, stands out for its drain capacity of 0.45 l/s (single outlet) and 0.80 l/s (dual outlet) and water seal of 50 mm. The overall height of the unit is 78 mm
Supplied with:

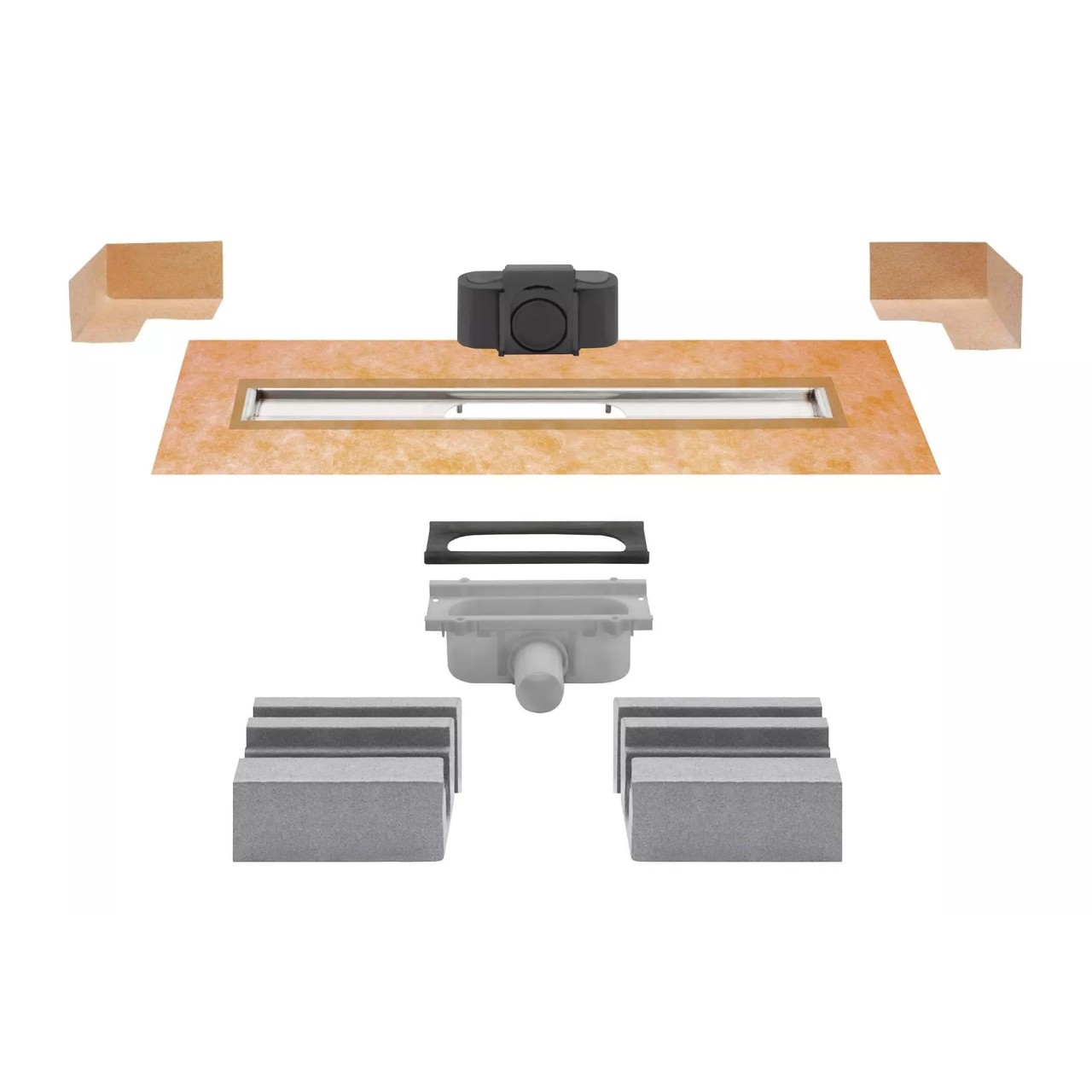

Set includes:
Note: for installation with a suspended timber floor with the preformed tray KERDI-SHOWER-LTS, we recommend the installation accessory KERDI-LINE-F-G3, a timber accessory set for installing the drainage channel KERDI-LINE-G3.
There are three methods of installation:
Please refer to the three installation instruction documents in the downloads tab.

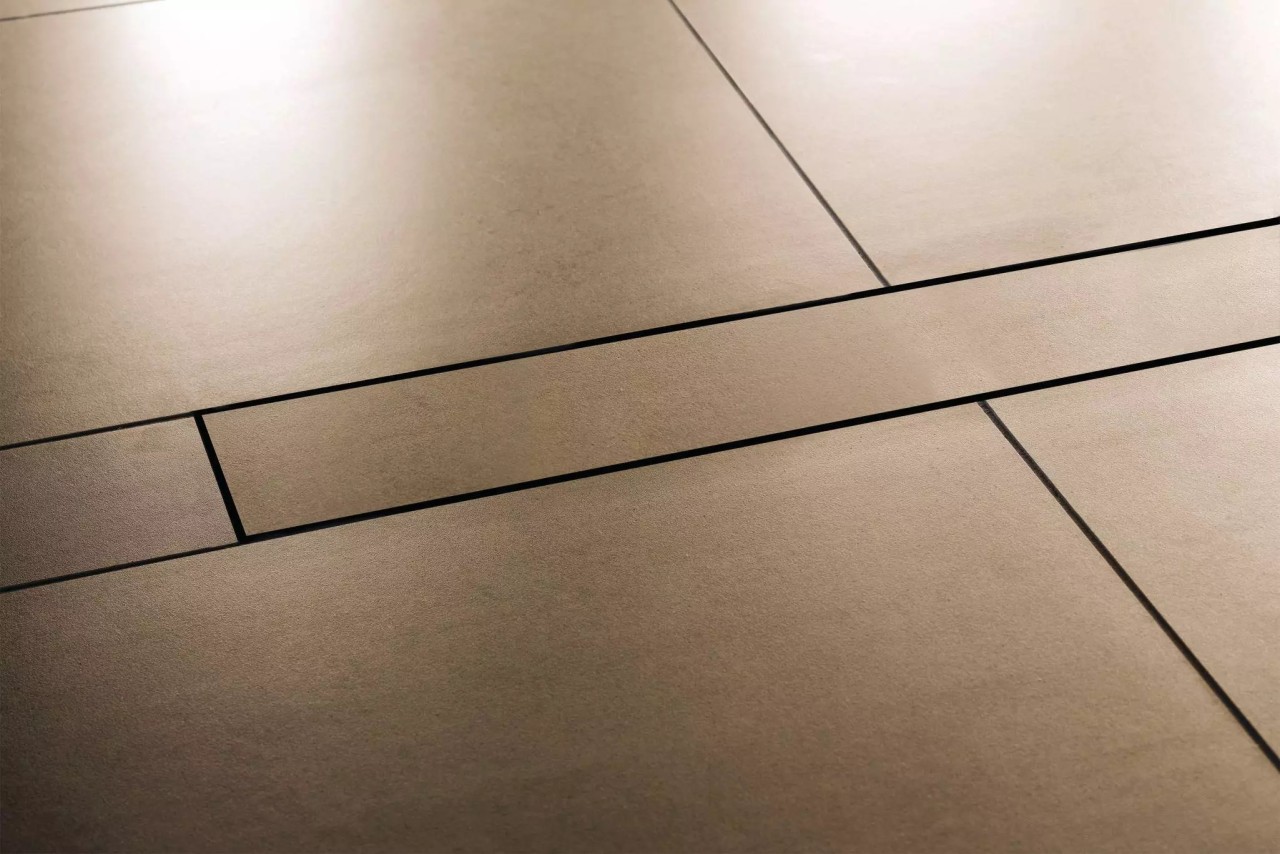

KERDI-LINE-D completely frameless channel cover - How to install this product
Follow the installation steps of the KERDI-LINE-G3 linear drainage system (refer to the products for detailed instructions).

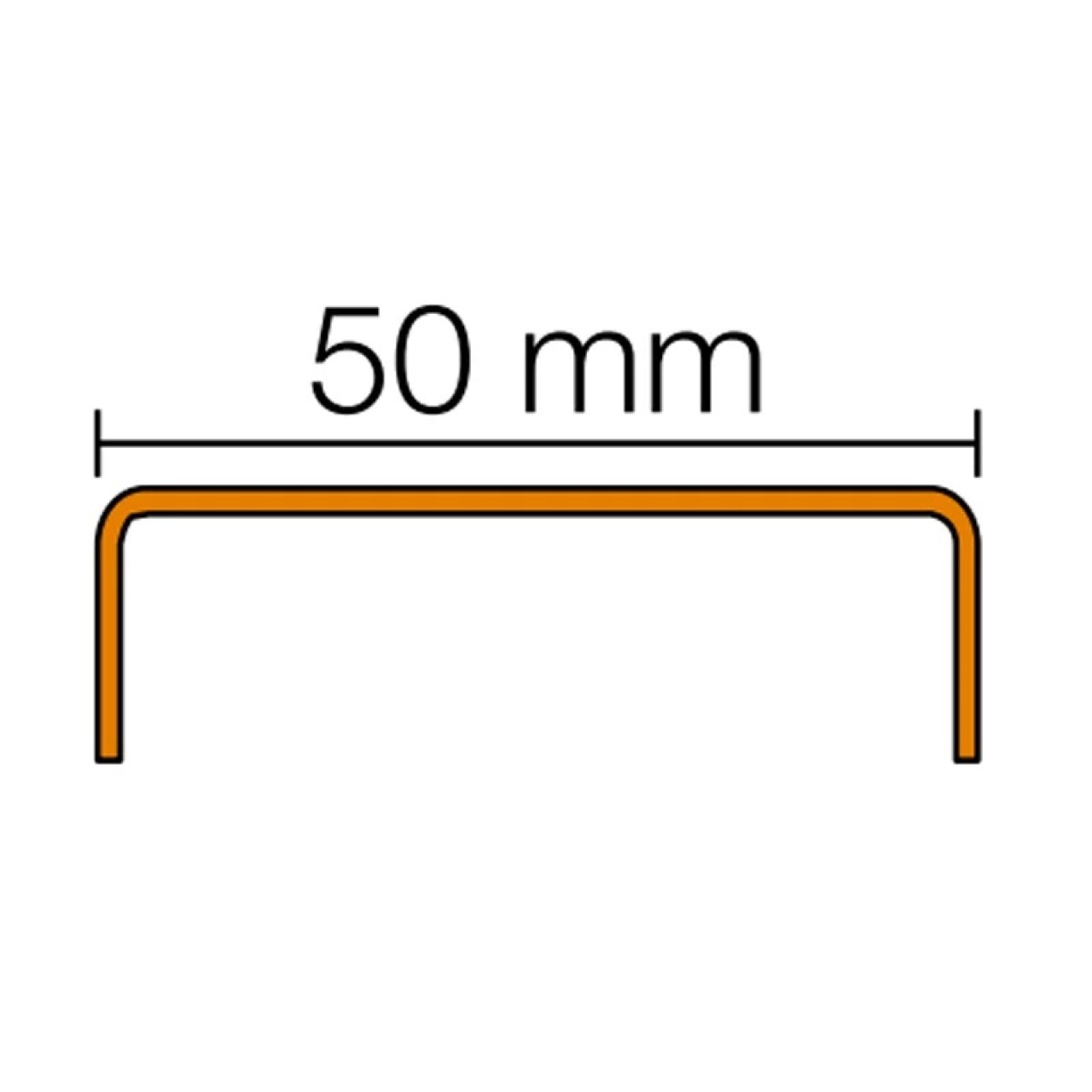

For intermediate installation, the width of the covering corresponds to the inside width of the spacer (= 50 mm).
At the exposed edges, the cover can either be adapted to the joint width of the entire covering or installed as a perimeter drainage.
Note: Remove any excess thin-bed mortar completely and seal any open areas in the adhesive layer.
Note: The use of acetic-crosslinking silicone is not permissible on channels, frames and grates.
