Schluter KERDI-LINE-G3 Kit - 200x136cm Tray and 90cm Tileable Grate - Centre Outlet - DWPK90

Schluter KERDI-LINE-G3 Kit - 200x136cm Tray and 90cm Tileable Grate - Centre Outlet - DWPK90

£805.74 inc.VAT (£671.45 ex.VAT)
Out of Stock

Schlüter have taken their most popular linear drain - Schluter-KERDI-LINE-G3 - and combined it with the other products you will need to create a ready to tile shower floor area. Just choose your desired length of drain.

Additional Products (Optional)

£805.74 inc.VAT (£671.45 ex.VAT)

Have a question? Get in touch

01937 534577

Share this

  • Downloads

Schlüter have taken their most popular linear drain - Schluter-KERDI-LINE-G3 - and combined it with the other products you will need to create a ready to tile shower floor area. Just choose your desired length of drain.
All the kit components can be purchased separately too.

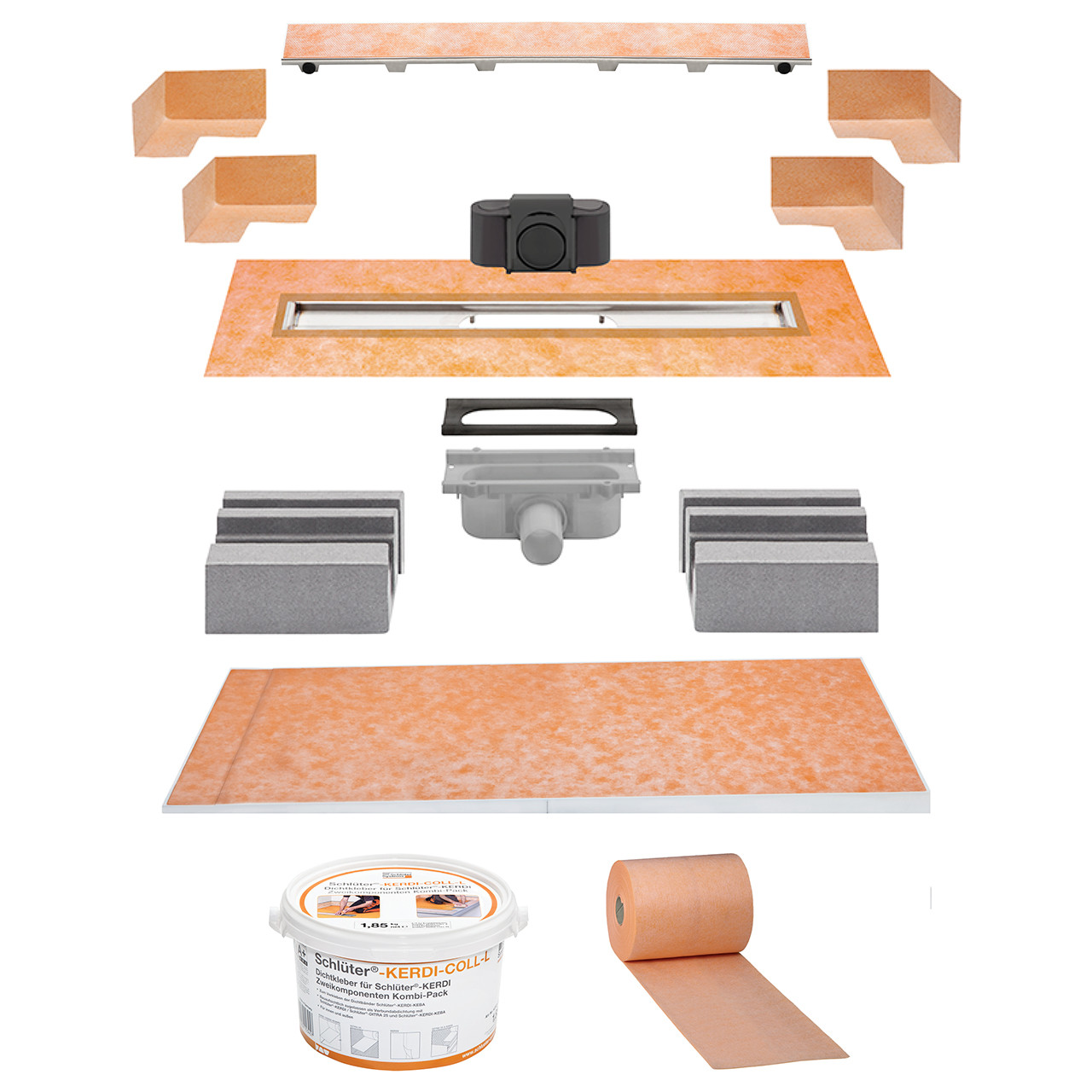

G3 Kit Components (DWPK90):

  • 1 x Tileable Shower Tray - 200x136cm (13-39mm thickness)
  • 1 x Linear Drain - Centre Outlet
  • 1 x Tileable Drain Grate - 50mm Width x 90cm Length
  • 4 x Kerdi-Kereck - Internal Corner Seals
  • 1 x Kerdi-Coll-L - Sealing Adhesive - 1.85kg
  • 1 x Kerdi-Keba - Sealing Band - 5m x 125mm

Please Note: If the drain is to be installed into a timber substrate floor, then please order the installation accessory; KERDI-LINE-F-G3 (KL F 43 G3 TA).

KERDI-SHOWER-LTS

  • Length = 200cm
  • Width = 136cm (drainage on this side)
  • Maximum Height = 39mm
  • Minimum Height = 13mm
  • Slope = 1.25%

The Schluter-Shower-LTS tray sloped tray is made of compression-resistant expanded polystyrene (EPS). A KERDI waterproofing membrane is laminated on the surface of the sloped tray (1.5% slope). Schlüter-KERDI is a waterproofing membrane made of soft polyethylene with a special fleece fabric surface for effective anchoring in tile adhesive and other covering materials.

The tray can simply be cut to size with a utility knife, using the pre-marked cutting grooves. Depending on the application at the construction site, the sloped tray can be used with the corresponding, load-bearing substrates (e.g. wooden studs, vertical drain, mortar substrate etc.).

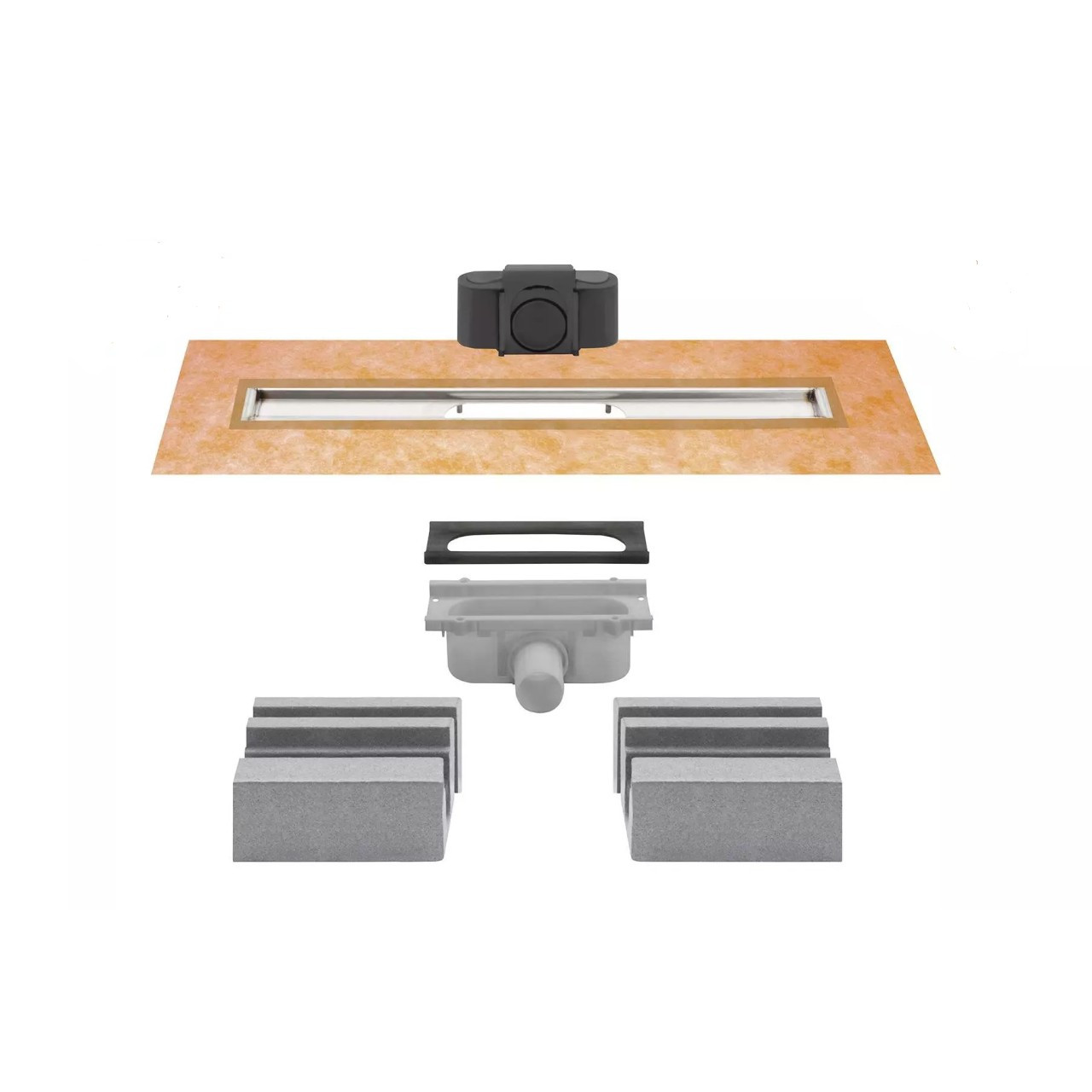

KERDI-LINE-G3 - Low height linear drain compliant with BS EN 1253

Specifically designed to simplify drainage from tiled showers and wet rooms – whether a new build or refurbishment project.
Use in conjunction with the Schlüter®-KERDI system components and other Schluter products to provide a fully waterproofed integrated system solution, as per ETAG 022 (watertight covering kits).

  • Overall height = 78mm
  • Horizontal outlet – 40mm ID/43mm OD solvent weld, easily converted to 50mm
  • Pre-applied Schluter® KERDI waterproofing collar
  • ‘Shutter’ gate clamp secures O-ring, creating a tight seal
  • Air tightness as per Building Regulations
  • Intermediate/central or wall/perimeter installation positions
  • Choice of 8 channel lengths, 500mm to 1200mm in 100mm increments
  • Central, offset or dual outlet

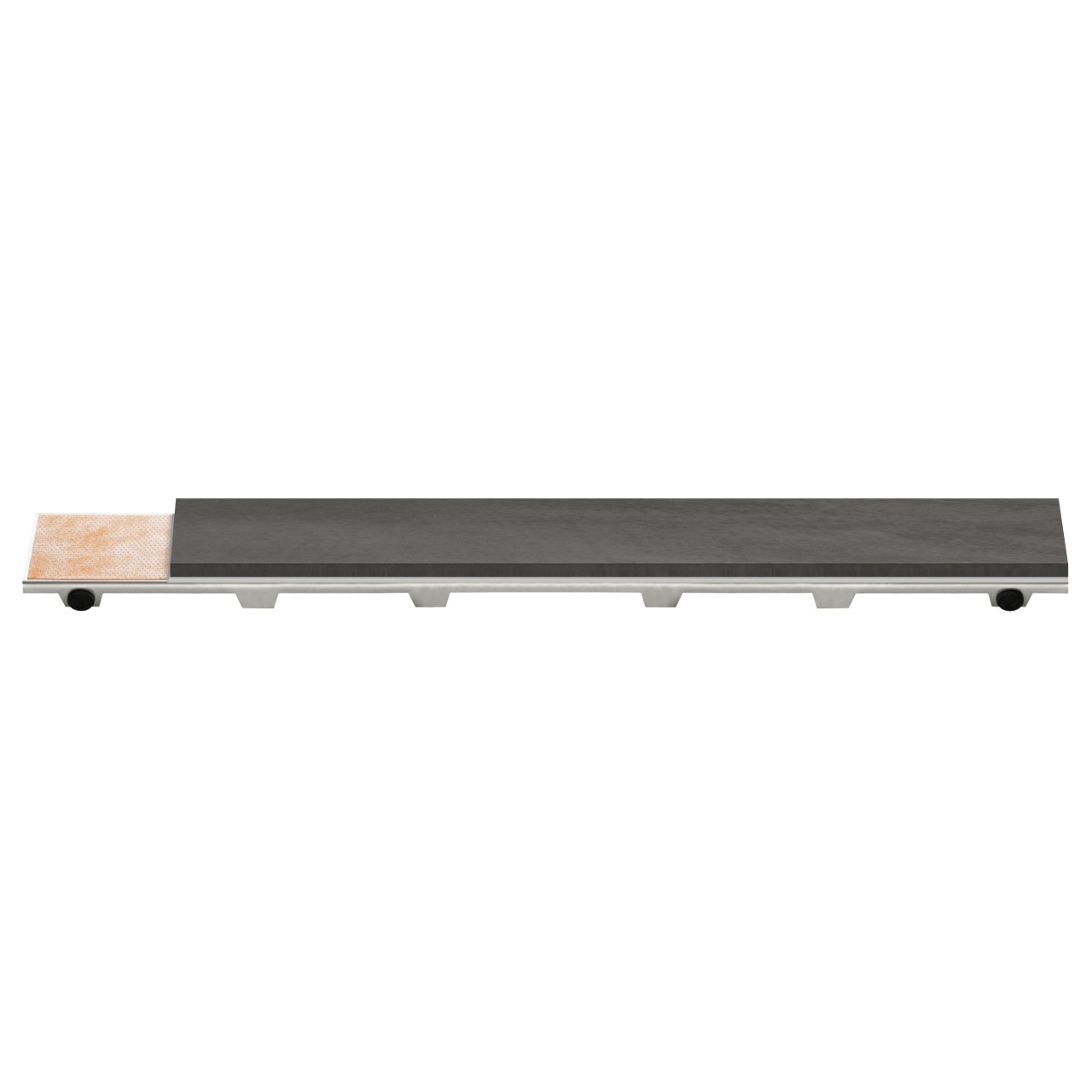

KERDI-LINE-D-G3 - Frameless Channel Cover

Frameless channel cover to match the KERDI-LINE G3 channel bodies.
The covering support features a fleece fabric for bonding with the tile adhesive and is universally suitable for all covering thicknesses.

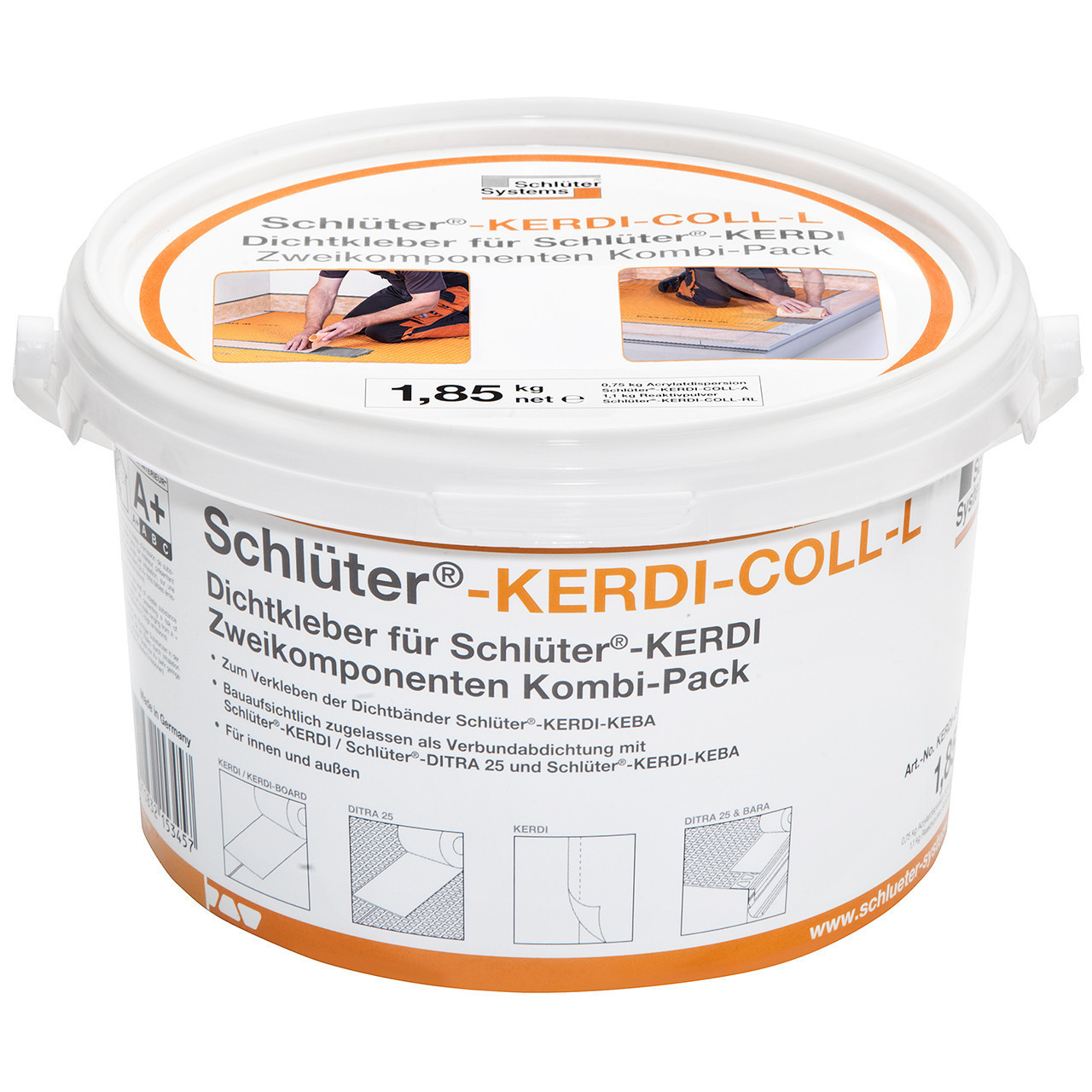

KERDI-COLL-L - Sealing Adhesive

How to install this product
Apply the material on clean and dry KERDI, DITRA or DITRA-HEAT membranes/mats, KERDI-BOARD or BARA profiles. The suitability of other substrates must be verified and evaluated. Depending on the application, the material can be applied with the smooth side of a trowel and then grooved with a notched trowel of size 3 x 3, 3 x 4 or 4 x 4 mm. If the material is mixed to a thinner consistency, it can be applied with a brush or a roller.

Fully embed the materials to be adhered as quickly as possible (before a film forms on the surface), avoiding all air pockets.

We recommend drawing the smooth side of the notched trowel over the KERDI-KEBA tape or using a suitable pressure roller for adhering the seaming tape. Again, make sure there are no air bubbles.

KERDI-KEBA - Sealing Band

Whether you opt for DITRA mats or KERDI waterproofing membrane, the abutting joints between elements as well as wall/floor transitions require reliable waterproofing. We have two products in our range for this: KERDI-KEBA polyethylene sealing band with fleece laminated on both sides and the KERDI-COLL-L sealant adhesive.

  • Width - 12.5cm
  • Thickness - 0.1mm
  • Material - PE (polyethylene)
  • Install using the sealing adhesive Schlüter-KERDI-COLL-L

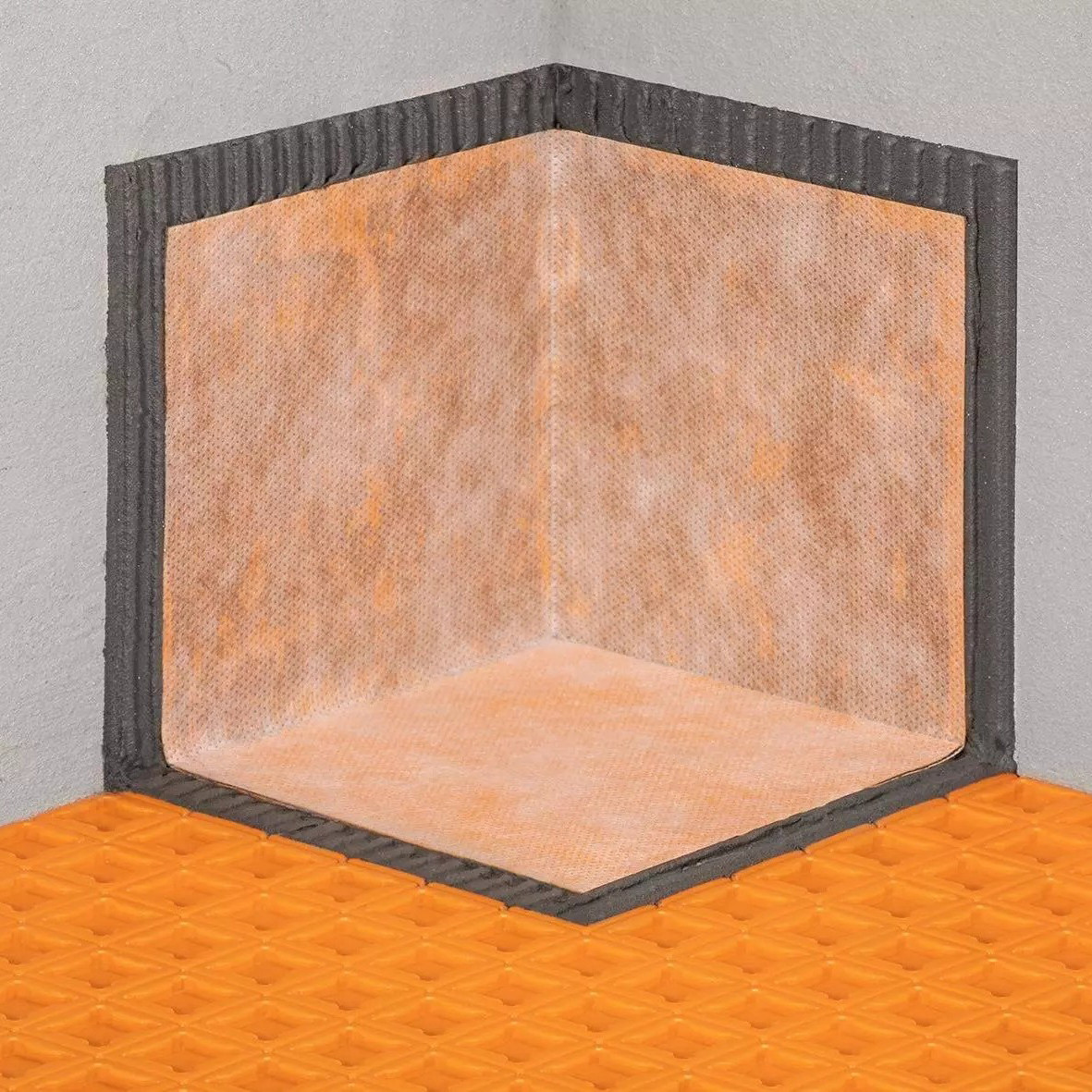

KERDI-KERECK - Corner pieces for waterproofing

For reliable waterproofing at challenging corners in wet rooms, we recommend KERDI-KERECK.
The pre-cut sections are made of the same polyethylene as the proven KERDI membranes and have a fleece laminated on both sides for optimal anchoring in the tile adhesive.

  • 90 Degree Internal Corner
  • Thickness - 0.1mm
  • Material - PE (polyethylene)
  • Seam Sealed
  • Install using the sealing adhesive Schlüter-KERDI-COLL-L

For further information see data sheets and installation video.
