Schlüter-KERDI-DRAIN is a floor drain system for the simple and secure connection of bonded waterproofing membranes to the drainage system of buildings. Bonded waterproof layers, which are recognised by the ZDB (German Contractors Association) notification as current state of technology.

The Schlüter-KERDI Collar is attached to the large, trapezoid-perforated, and fleece coated adhesive flange of the thin-set insert as a sealing connection to the bonded waterproofing assembly.

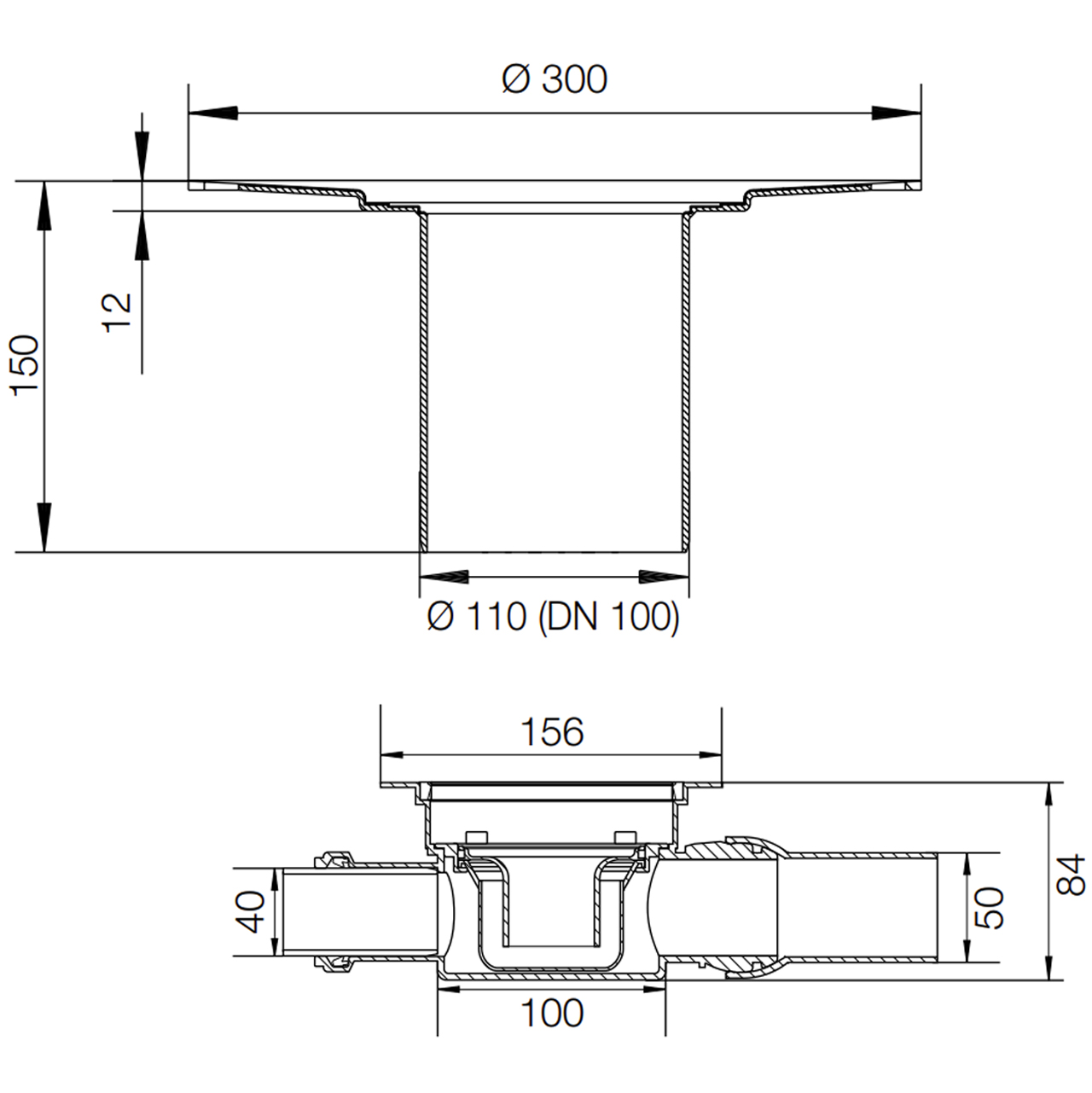

Floor drain set DN 50 with odour trap
Inlet DN 40 (40mm), outlet DN 50 (50mm) with pivot connection
Drain capacity according to DIN EN 1253:

• With 2cm head of water = 0.6 l/s (36 l/min)
• With 1cm head of water = 0.55 l/s (33 l/min)
• Water Trap Height: 3cm
• Art. No. KD BH 50GV
• Supplied Unit: - Drain body - Thin-set insert DN 100 - Schlüter-KERDI Collar

Schlüter-KERDI-DRAIN products have a modular structure and can be individually assembled to match every requirement.

A variety of grate designs can be combined with different vertical or horizontal drain body with or without odour traps.

Schlüter-KERDI-DRAIN-STYLE offers various grate designs in conjunction with a virtually invisible contour frame.

• NB - Grates are sold separately

Schlüter-KERDI-DRAIN-BASE is an especially low floor drain that is suitable for installation in barrier-free shower designs created with conventional method or with Schlüter-KERDI-SHOWER floor components.

With a drain capacity of at least 0.4 l/s (in accordance with DIN EN 1253), the dry odour trap can permanently replace the existing odour trap unit in those cases. The enclosed care instructions must be observed.
