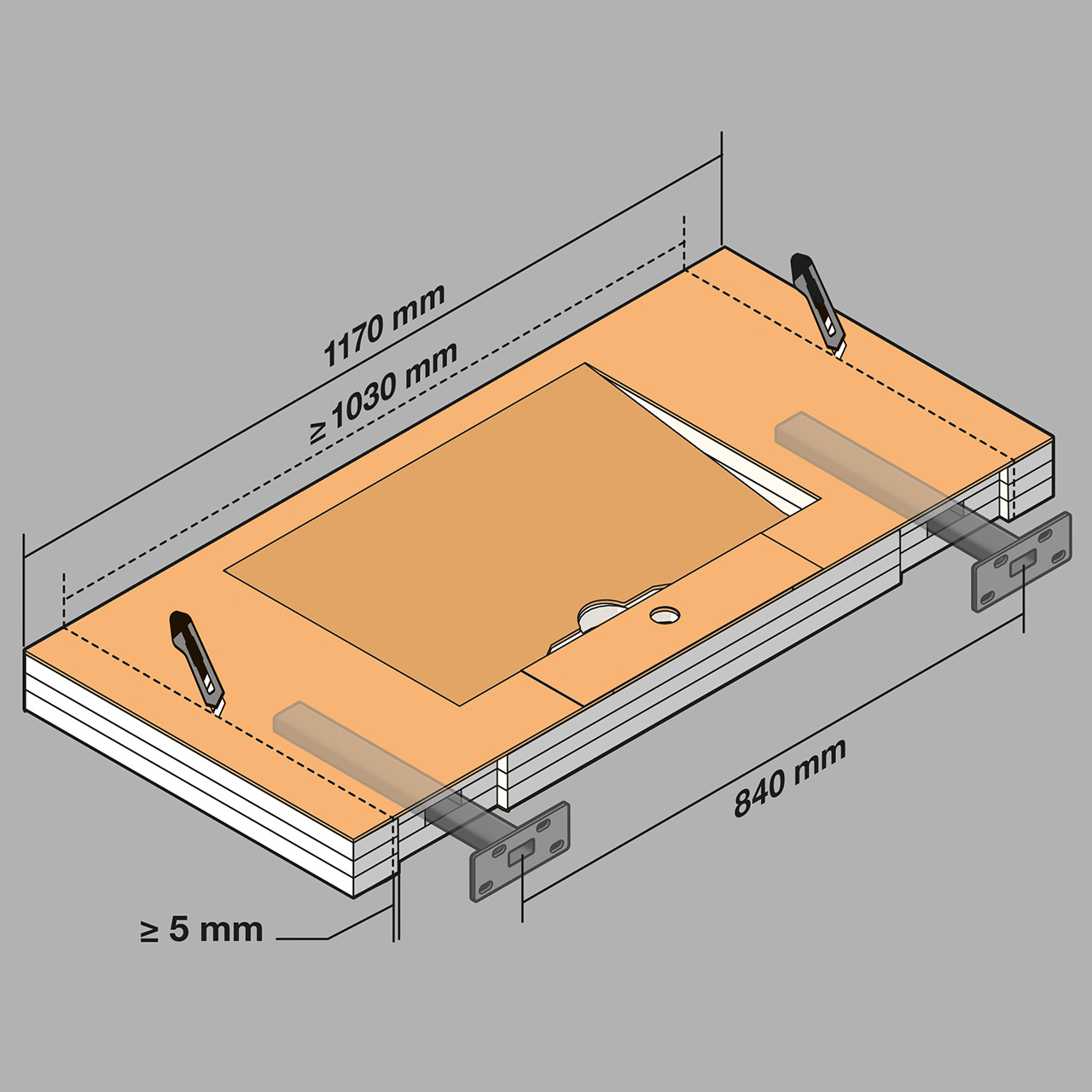

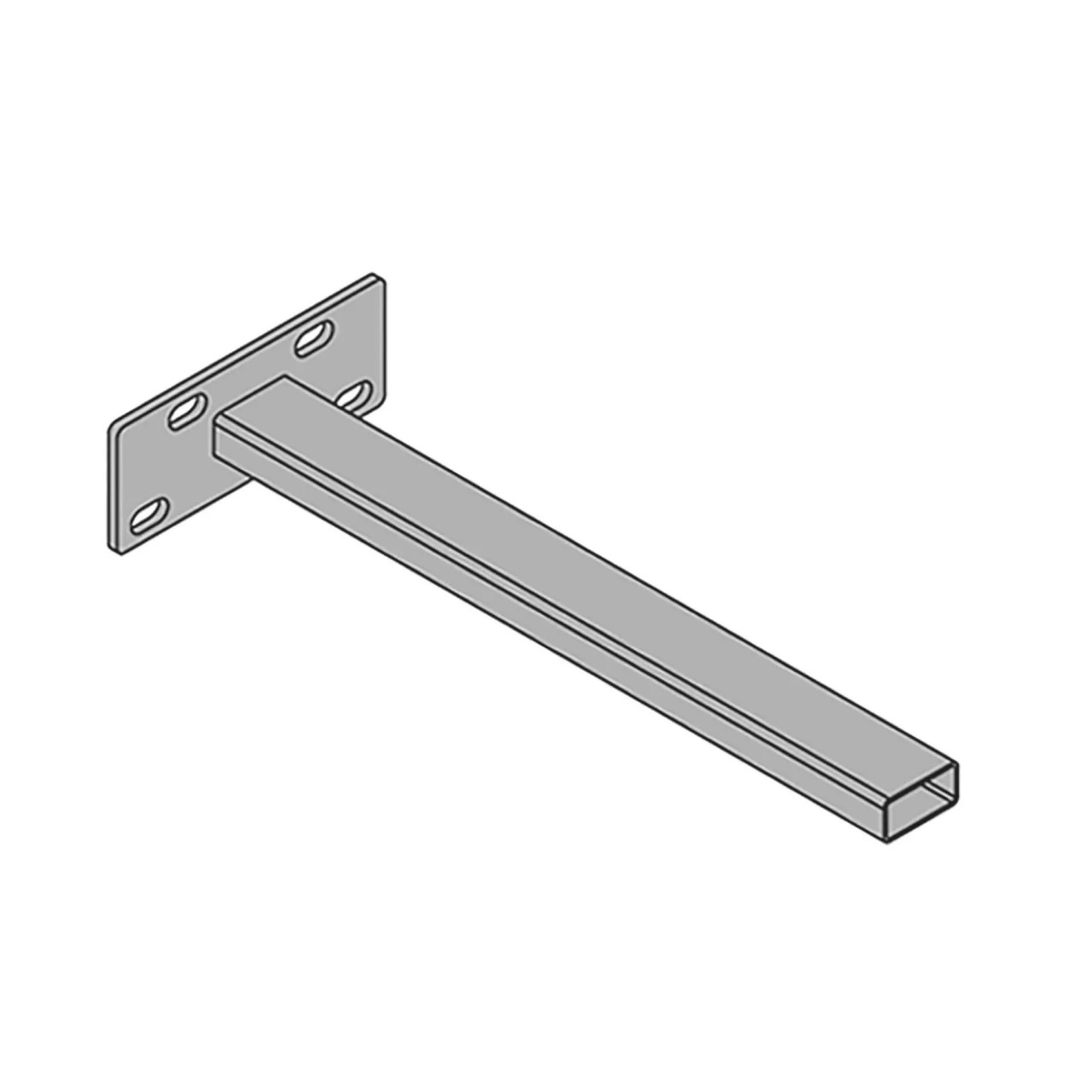

Console set for floating wall attachment of KERDI-BOARD WW and KERDI-BOARD-WS vanity units, includes mounting materials.

Set Includes:

• 2 consoles
• Mounting materials (8 x Screws, washers and plugs)
• Drilling template

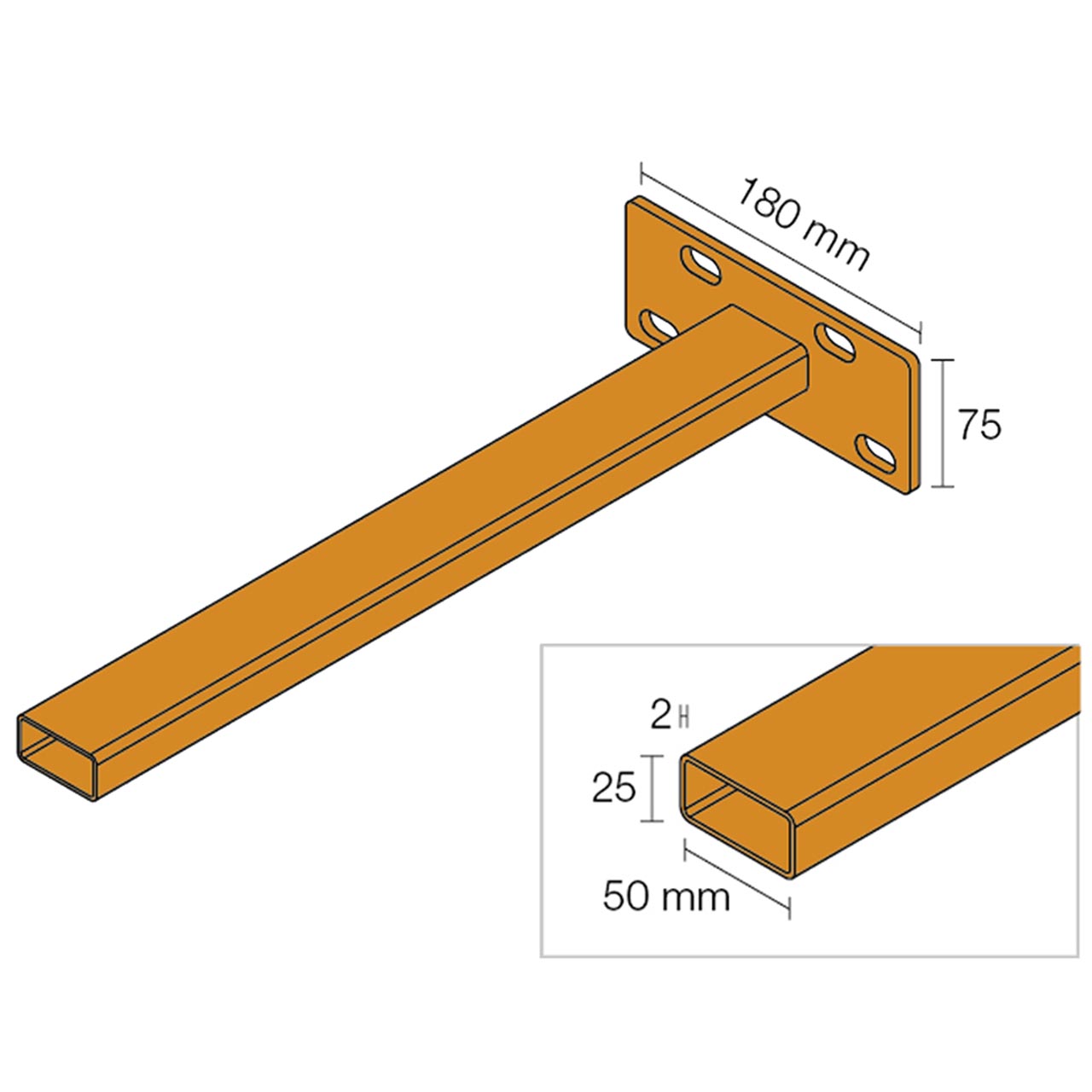

Dimensions:

• 450 x 75 x 180mm (W x H x D)

Please Note:

The installation substrate must be rigid, even and load-bearing.
If fixing the washbasin/vanity unit to a stud wall or to KERDI-BOARD, pattressing is required to provide a load bearing structure. In this situation there is no need to use the wall plugs.
If fixing to dot and dab (plasterboard over blockwork) walls the brackets should be fixed on to the face of the plasterboard.
Suitable fixings, which bridge the gap behind the plasterboard, transfer the load to solid blockwork and prevent the plasterboard crushing, must be used. An example is 'Corefix Metal & Plastic 100 Heavy Duty Dot & Dab Wall Fixings 10 mm x 95 mm'.
When the void behind the plasterboard is greater than the span of these fixings we suggest the wall plates of the brackets are fully supported on packers.

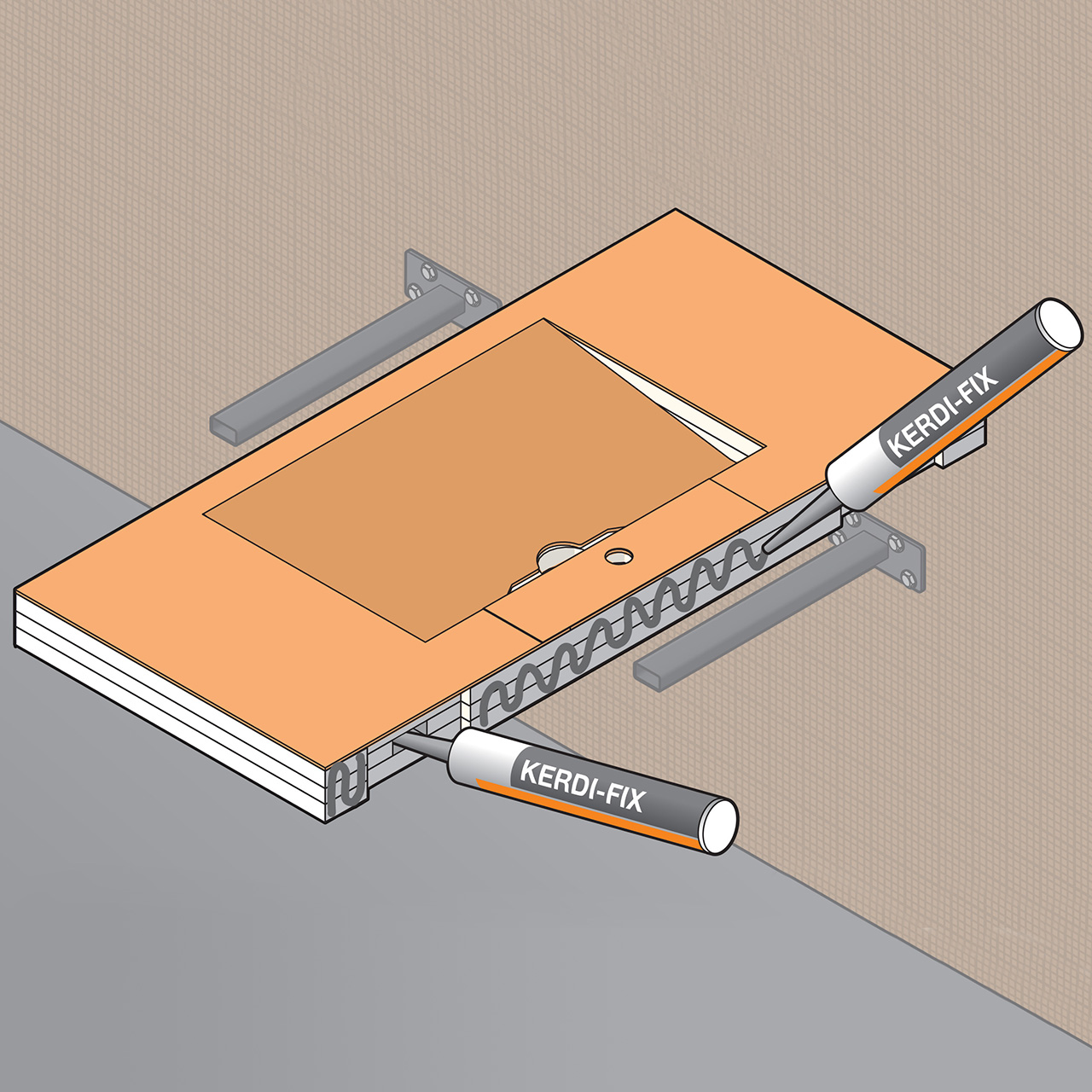

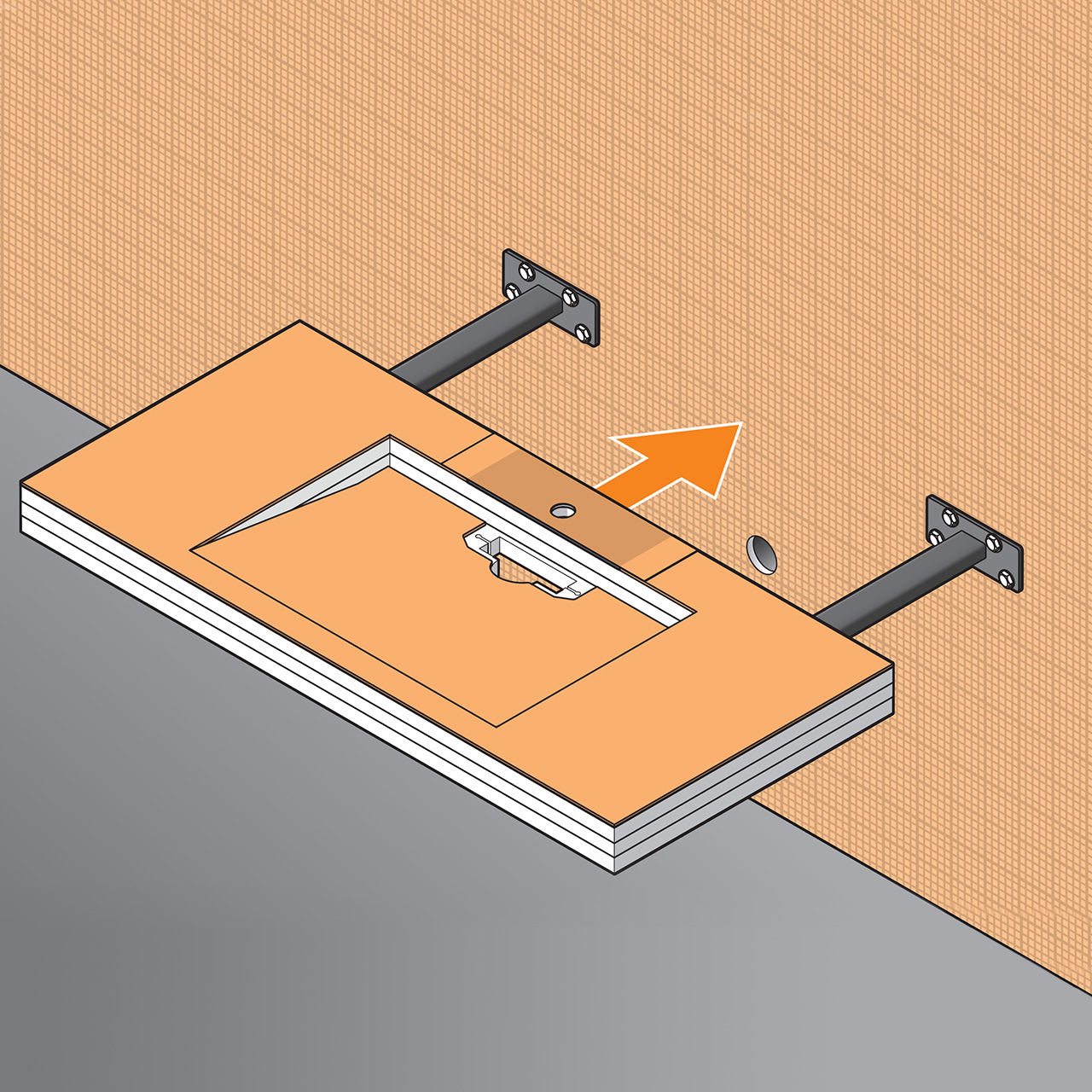

The wall should be tiled after the washbasin/vanity unit is secured to the wall.

Please see data sheets and installation guide for further information.
