The RUBI POWERVAC ENERGY is the perfect accessory to transform any Ø 200 manual suction cup with a removable piston into a much safer, more comfortable, and more efficient tool.
This system incorporates an electric suction pump with a rechargeable battery, which automatically generates a vacuum, replacing the traditional manual piston and increasing the performance of the suction cups.
The RUBI POWERVAC ENERGY is compatible with most suction cups on the market. Its main advantage is safety; its suction pump automatically reactivates when it detects even the slightest loss of pressure, guaranteeing a constant grip and preventing unexpected drops of the transported item with a maximum recommended load of 120 kg.
It has a 3.7 V, 0.9 Ah lithium battery, which offers up to 24 hours of operation under normal use, as the pump only activates for a few seconds when it detects a loss of vacuum. A full charge takes approximately 3 hours.
Charging is quick and easy via USB-C connection, compatible with any universal 5V charger up to 2A (using the included cable).
The RUBI POWERVAC ENERGY is the ideal solution for those seeking greater safety, efficiency, and versatility in their material handling and transport operations.
Features
- Greater safety: The pump automatically reactivates whenever the suction cup loses pressure preventing the transported piece.
- Reduced effort: It eliminates the need to manually pump the suction cup.
- Dual operation: It allows the suction cup to be used either manually or electrically, providing more versatility and enabling the user to choose the most suitable option depending on the task or working conditions.
- Extended handling time: The battery has a continuous runtime of more than 8 hours and only activates for a few seconds when a loss of vacuum is detected, so it can last for more than a working day.
- Easy charging: Charges via a USB‑C port. Any 5V 1A/2A mobile phone charger with a USB output can be used with the supplied cable.
- Compatible with RUBI SC-200, GSC-200, ELLIP SC, and the SLAB TRANS HD, SLAB TRANS MINI, and SLIM EASY TRANS PLUS transporters.
How to use:

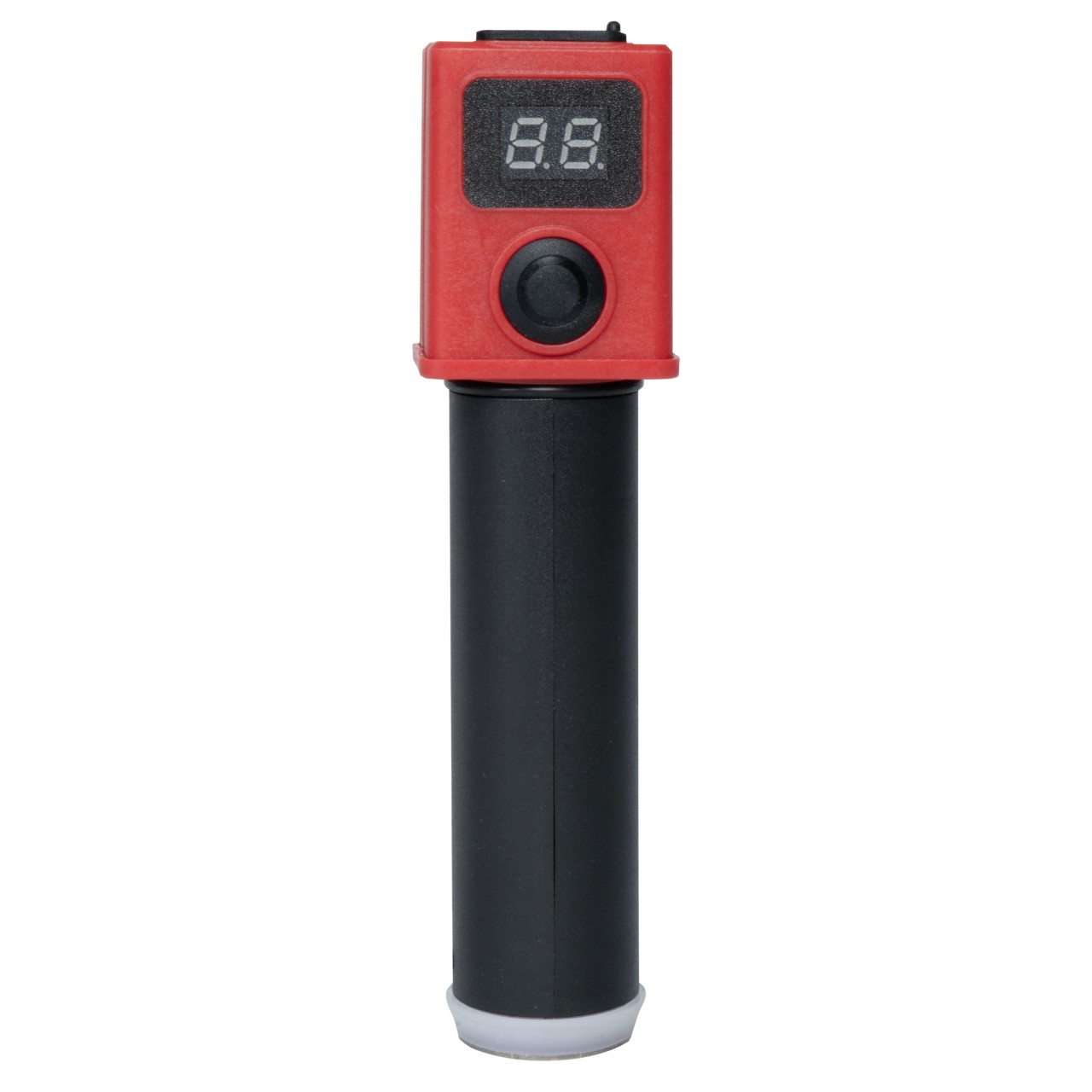

- LED indicator: With various functions (On, Suction, Battery, and Release)
- When switched off: With a single press of the power button, the LED display shows the battery level (max. P9, min. P1). It is recommended to recharge the battery when it reaches P4. The display switches off automatically after a few seconds. If Lo appears, it indicates that the accessory is completely out of battery.
- When operating: The display continuously shows the pressure level of the suction cup. Once positioned on the suction cup, pressing the activation button for several seconds will show "On" on the display, and the pump will activate and generate suction until reaching 70 kPa.
- During charging: The charging level number will flash, indicating the current charge status.
- Automatic vacuum-pump reactivation: When the suction cup pressure drops to 55 kPa, the pump automatically reactivates until it reaches 70 kPa again.
- Includes a plastic container for storing the piston not in use, preventing damage.
Technical Specifications
- Battery: 3.7 V, 1000 mAh lithium
- Charging time: 3 hours approx.
- Charging port: USB-C type. Includes 1-metre cable with USB-C and USB-A connectors. A 5V charger with a maximum 2A output is required (not included).
- Net weight: 122 g
- Dimensions: 14.5 x 3 x 3.5 cm
