Please note: The Aquafix 300mm Linear Waste Sytem is for use with
Aquafix Wetroom 300mm Linear showertrays only.
It is not compatible with non-Aquafix or self-designed wetroom formers.

This shower gully is specially designed for use with all sizes of the AquaFix wet room shower trays which have 300mm linear drains. It fits perfectly into the waste location, is adjustable in height according to tile thickness (maximum tile thickness of 10mm), and is manufactured to fit UK standard plumbing pipework.

Contents

• 1 x Linear Shower Gully
• 1 x 300mm Cover Plate
• 1 x 300mm Finishing Trim

Aquafix Linear Shower Gully Features

• Designed for use with Aquafix Wet Room Shower Trays only.
• Removable hair trap
• High flow trap (60L per minute)
• Horizontal Outlet pipe size 2"", with 1 1/2"" reducer (UK Solvent weld fitting)
• Multi directional outlet with blanking plate
• Dimensions of trap under installed tray: 170x80x80mm (length x width x depth)

Cover Plate Features

• Colour: Matt Black
• Grate Size: 300 x 40mm
• Height adjustable - 2 x threaded Cover Plate Supports included

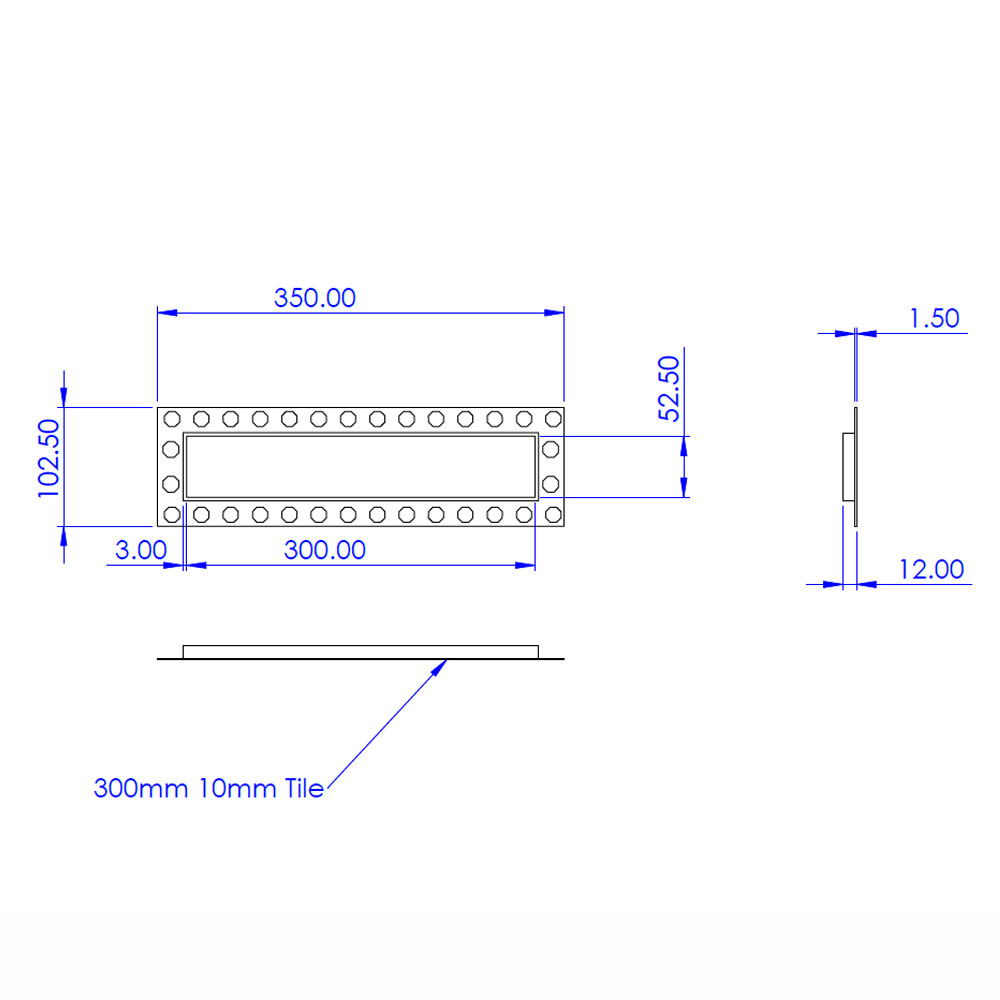

Finishing Trim Features

Finishing Trim for Aquafix 300mm Linear Drain Shower trays. Replaces the need to cut and install tile trim.

• For use with Aquafix 300mm drain
• Colour: Matt Black
• Suitable for a maximum tile thickness of 10mm
• Secure into position with a waterproof adhesive such as Fix MD / Everbuild Stixall
